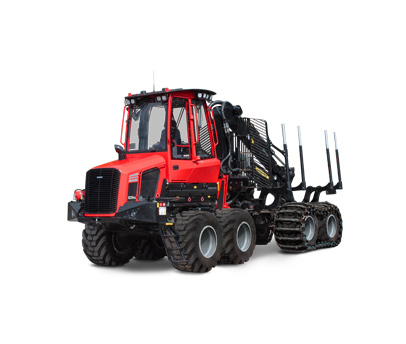

835TX

The Komatsu 835TX is optimal for thinning with its accessibility and strength. It is a lightweight forwarder, with high ground clearance and a fuel efficient engine, which all contributes to reducing the environmental impact

Quantity:
Dimensions
A. Width:
With 600/50x24,5 tyres: 2 620 mm
B. Length, total:
9 380 mm (with shortest rear frame)
C. Length, front axle to middle joint:
1 900 mm, 2 150 mm with tracking frame
D. Length, middle joint to rear axle:
2 900 mm, 2 650 mm with tracking frame
E. Transport height:
3 840 mm/ 3 800 mm 105F with crane tilt
F. Ground clearance:
610 mm
Ground clearance:
610 mm
Specifications
