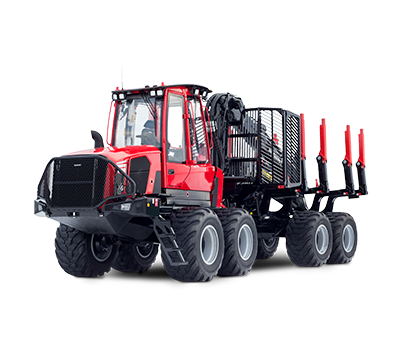

The Komatsu 875 is a profitable forwarder in a class of its own. Powerful for clear cutting and functional for thinning. It is strong and highly productive yet nimble enough to be an allround forwarder.
Stage V , Tier 4F and Stage II: 190 kW DIN at 1 850 rpm, MAR-1 185 kW at 1 900 rpm.
Torque:
Stage V , Tier 4F and Stage II: 1 130 Nm at 1 500 rpm, MAR-1: 1 000 Nm at 1 500 rpm
Type (Europe and North America):
AGCO Power, 6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4F, Stage II and MAR-1.
Stroke volume:
7,4 l
Fuel Tank:
220 l
Hydraulic system
Max hydraulic flow:
360 l/min at 2 000 rpm
Loader and grapple
Gross lifting torque:
130F: 127 kNm, 145F: 145 kNm
Gross slewing torque:
130F: 28.7 kNm, 145F: 38,0 kNm
Loader:
Komatsu 130F, Komatsu 145F
Reach:
130F: 8 m / 10 m. 145F: 8,5 m / 10 m
Rotator:
G121/G141 ProTec and slewing dampened link
Grapple:
Komatsu G28/G36
Electrical System
Voltage:
24 V
Battery capacity:
2 x 180 Ah
Generator:
2 x 100 A
Transmission
Driving speed:
0-25 km/h
Tractive force:
213 kN
Notes
General information:
The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
