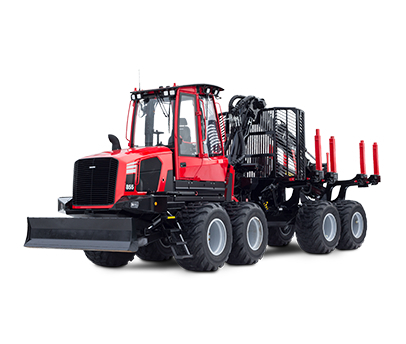

The Komatsu 855 is an allround forwarder, suitable for both thinning and clear cutting. The forwarder is powerful yet compact and offers you long-term productivity in all situations.
AGCO Power, 6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4F and Stage II.
Stroke volume:
6.6 l
Fuel Tank:
160 l
Hydraulic system
Max hydraulic flow:
280 l/min at 2 000 rpm
Loader and grapple
Gross lifting torque:
130F: 127 kNm, 145F: 145 kNm
Gross slewing torque:
130F: 28.7 kNm, 145F: 38 kNm
Loader:
Komatsu 130F, Komatsu 145F
Reach:
130F: 8 m / 10 m, 145F: 8.5 m / 10 m
Rotator:
G121/G141 ProTec and slewing dampened link.
Grapple:
Komatsu G28
Electrical System
Voltage:
24 V
Battery capacity:
2 x 180 Ah
Generator:
2 x 100 A
Transmission
Driving speed:
0-25 km/h
Tractive force:
186 kN
Notes
General information:
The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
