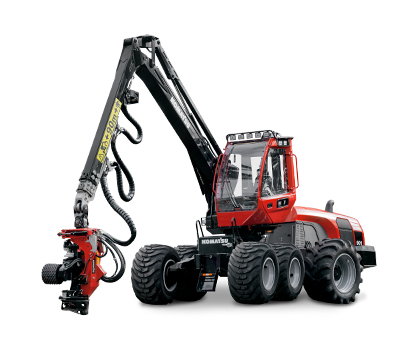

The Komatsu 901 harvester is both agile and powerful for its size. With its high productivity and operator comfort it is optimal for thinning. It has high work capacity and the possibility to operate several crane and head functions at the same time, keeping low fuel consumption.
EU Stage V and Tier 4F: 170 kW DIN at 1 900 rpm. Stage II: 165 kW DIN at 1 900 rpm
Torque:
EU Stage V, Tier 4F and Stage II: 950 Nm at 1 500 rpm
Type (Europe and North America):
AGCO POWER. 6-cylinder diesel engine with turbo and intercooler. EU Stage V, Tier 4 F and Stage II.
Stroke volume:
6.6 l
Fuel Tank:
370 l
Harvester Heads
Available heads:
S82, S92, C93
Boom
Model and reach:
200H : 10 m or 11 m
Gross lifting torque:
197 kNm
Gross slewing torque:
43 kNm
Hydraulic system
Flow:
400 l/min
System pressure:
280 bar
Electrical System
Voltage:
24 V
Battery capacity:
2 x 180 Ah
Generator:
2 x 100 A
Transmission
Driving speed:
0 - 24 km/h
Tractive force:
164 kN
Notes
General information:
The specifications describe possible equipment, not which equipment is standard or optional. Standard and optional equipment varies between countries. Your sales representative has an up-to-date list of what is included. Weights are based on the equipment specified in the basic specification. Specifications and designs are subject to alteration without prior notice.
